Description
Professional 3-station aging test equipment for gas wall-hung boilers and water heaters. PLC+touchscreen control. Tests outlet temp, flow rate, gas pressure. Meets GB6932-2015 & GB2665-2015.

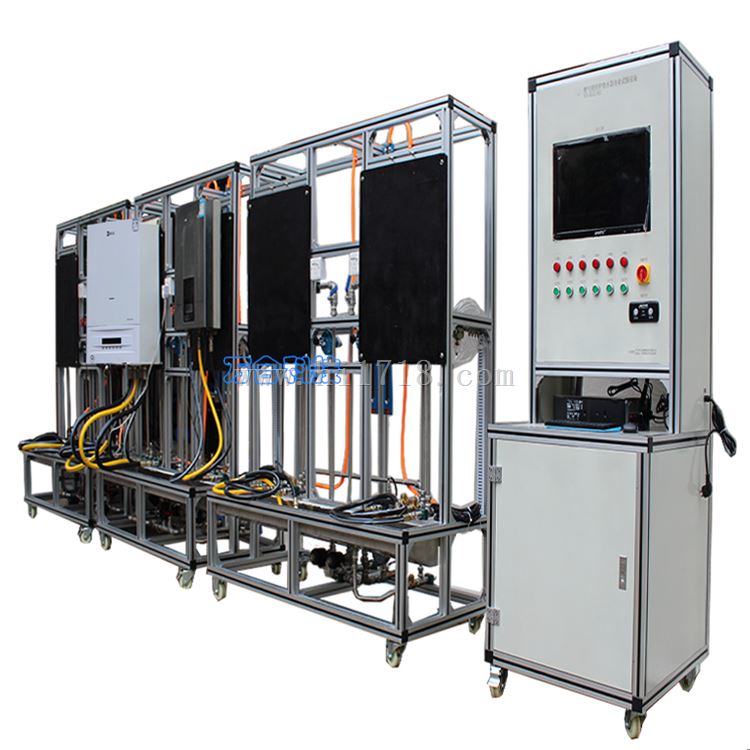

The WH-BG02-815A 3-Station Aging Test Equipment is designed for aging tests of gas water heaters and gas wall-hung boilers (heating furnaces). It complies with:
-
GB6932-2015 – Houseary gas instantaneous water heaters
-
GB2665-2015 – Minimum allowable values of energy efficiency and energy efficiency grades for domestic gas instantaneous water heaters and gas fired heating and hot water furnaces
The system uses a touchscreen HMI + PLC for precise control, assembled with high-quality components. It offers stable performance, high safety, and reliable operation.
Technical Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| Compressed Air Pressure | 0.5 – 0.8 MPa | — |
| Inlet Water Pressure | 0 – 1.6 MPa | ±0.5% F.S. |
| Outlet Water Temperature | 0 – 100 °C | ±0.5% F.S. |
| Gas Flow Meter Pressure | 0 – 10 KPa | ±0.5% F.S. |
| Gas Supply Pressure | 0 – 10 KPa | ±0.5% F.S. |
Test Capabilities
| Test Item | Parameter Range |
|---|---|
| Outlet Water Temperature Test | 0 – 100 °C |
| Sanitary Water (DHW) Aging Test | 1 – 30 L/min |
| Heating (CH) Aging Test | 1 – 40 L/min |
| Inlet Water Pressure (Adjustable) | 0 – 1.6 MPa |
| Water Flow Rate (Adjustable) | 0.05 MPa / 0.50 MPa |
| Gas Pressure (Adjustable) | 0 – 10 KPa |
| Leakage Protection Function | Built-in |
Key Features
-
3 Independent Test Stations – Simultaneous aging tests on multiple units
-
Compliant with GB Standards – Meets GB6932-2015 and GB2665-2015
-
Precise Control – Touchscreen HMI + PLC system
-
Adjustable Parameters – Water pressure, flow rate, and gas pressure
-
Dual Function – Supports both domestic hot water (DHW) and central heating (CH) aging tests
-
Safety Protection – Built-in leakage protection
